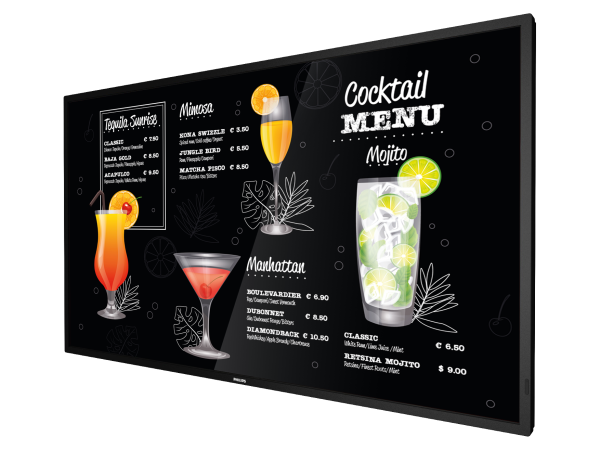

Philips 43 Zoll Monitor - P-Line, Professional Signage

Brighter content with 24/7 performance.

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.

Effortless setup. Total control.

• Operate, monitor and maintain with CMND & Control

Brilliant picture. Strong build.

• D-image:clinically accurate imaging
• Robust metal housing

Robust system solution

• Energy-saving automatic backlight control
• FailOver ensures content is always playing
• Sophistication and intelligence with SDM-L

Specifications

Picture/Display

• Diagonal screen size: 42.5 inch / 108 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60Hz
• Brightness: 750 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (typical): 8 ms
• Pixel pitch: 0.2451 x 0.2451 mm
• Display colors: 1.07 billion
• Viewing angle (H / V): 178 / 178 degree
• Haze: 25 %
• Panel technology: IPS

Supported Display Resolution

• Computer formats (Resolution / Refresh rate)
  1440 x 900 60Hz
  1024 x 768 60, 70, 75Hz
  1152 x 864 75Hz
  1152 x 870 75Hz
  1280 x 1024 60Hz
  1280 x 720 60Hz
  1280 x 800 60Hz
  1600 x 1200 60Hz
  1680 x 1050 60Hz
  1920 x 1080 60Hz
  640 x 480 60, 67, 72, 75Hz
  720 x 400 70Hz

• Video Formats
  Resolution	Refresh rate
  480p	60Hz
  576p	50Hz
  720p	50, 60Hz
  1080i	50, 60Hz
  1080p	50, 60Hz
  3840 x 2160	30Hz
  3840 x 2160	60Hz

Connectivity

• Video input: Display Port1.2 (x1), DVI-I (x 1), USB 2.0 ( x1), HDMI 2.0 (x3)
• Audio input: 3.5 mm jack
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio output: 3.5mm jack
• External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack, Ambient Light Sensor
• Other connections: Micro SD (x1), SDM-L, Thermal sensor

Convenience

• Placement: Landscape (24/7), Portrait (24/7)
• Tiled Matrix: Up to 15 x 15
• Keyboard control: Hidden, Lockable
• Signal loop through: IR Loopthrough, RS232, DisplayPort, HDMI
• Network controllable: RJ45, RS232
• Energy saving functions: Smart Power
• Screen saving functions: Pixel Shift, Low

Operating conditions

• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation)

Power

•  Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Consumption (Typical): 100 W
• Consumption (Max): 240 W
• Energy Label Class: G

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included Accessories:
  AC Switch Cover, Edge Alignment Kit (1) -1 pcs, Edge Alignment Kit (2) - 2 pcs, IR sensor cable (1.8 m) (x1), Philips logo (x1), Power cable (x3), Quick start guide (x1), Remote control & AAA batteries, RS232 cable (3 m) (x1), RS232 daisy chain cable (x1), USB Cover (x1), Wire Clamper (x3)
• Stand: BM05922(optional)

Miscellaneous

• On-Screen Display Languages: Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese
• Regulatory approvals: CE, FCC, Class A, CB, BSMI, EAC, EMF, VCCI, PSB, ETL, EPA
• Warranty: 3 year warranty

Multimedia Applications

•  USB Playback Audio: AAC, HEAAC, MPEG
• USB Playback Picture: JPEG, PNG, BMP
• USB Playback Video: H.264, Motion JPEG, MPEG1/2, WMV3

Dimensions

• Set dimensions (W x H x D): 972.98 x 561.22 x 76.80 mm
• Set dimensions in inch (W x H x D): 38.31 x 22.1 x 3.02 inch
• Bezel width: 13.9mm (Even bezel)
• Product weight (lb): 30.64 lb
• Product weight: 13.9 kg
• VESA Mount: 400 x 400 mm, M6
