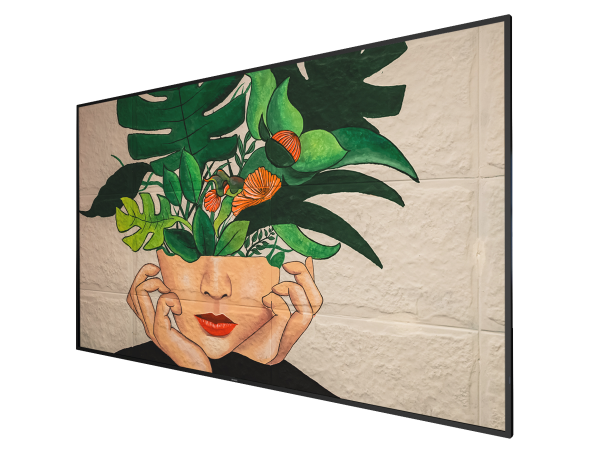

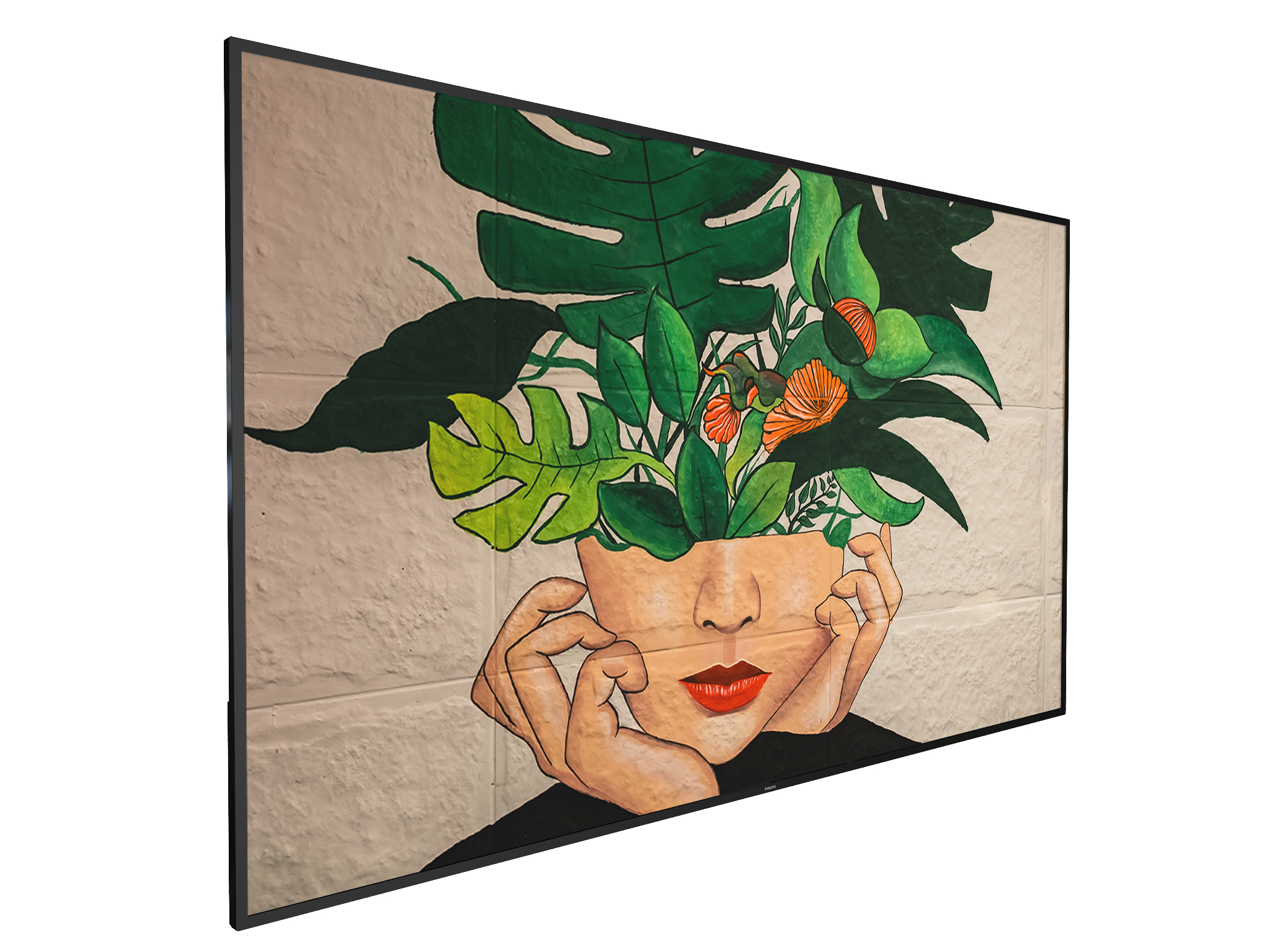

Philips 86 Zoll Monitor - D-Line, Basic Signage

Monitor für Dauerbetrieb

Make it stand out with a fast Philips D-Line Professional FHD display.Philips superb picture quality ensures true colors and intense contrast. You can effortlessly display content from multiple sources on a single screen.

Wichtige Merkmale:

• Optional OPS Slot
• SmartPower for energy saving

Brilliant picture. Blazing processor speed.

• IPS panel: rich color consistency from every angle
• Place in landscape or portrait orientation
• 4K UHD. Rich, deep images. Stunning contrast

Effortless setup. Total control.

• Operate, monitor and maintain with CMND & Control
• Schedule what you want, when you want with SmartPlayer

Cost-effective system solution

• Energy-saving automatic backlight control
• FailOver ensures content is always playing

Specifications

 Picture/Display

• Diagonal screen size: 85.6 inch / 217.4 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @60Hz
• Brightness: 500 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.4935 x 0.4935 mm
• Display colors: 1.07 Billion
• Panel technology: IPS
• Contrast ratio (typical): 1200:1
• Haze: 3%

Supported Display Resolution

• Computer formats
  Resolution / Refresh rate
  640 x 480 / 60Hz
  800 x 600 / 60Hz
  1024 x 768 / 60Hz
  1280 x 720 / 60Hz
  1280 x 1024 / 60Hz
  1440 x 900 / 60 Hz
  1600 x 900 / 60Hz
  1680 x 1050 / 60Hz
  1920 x 1080 / 60Hz
• Video formats
  Resolution / Refresh rate
  480i / 60Hz
  480p / 60Hz
  576p / 50Hz
  576i / 50Hz
  720p / 50,60 Hz
  1080i / 50, 60Hz
  1080p / 50, 60Hz

Connectivity

• Video input: Display Port1.2 (x1), DVI-I (x 1), HDMI 2.0 (x2), USB 2.0 (x2)
• Audio input: 3.5 mm jack
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio output: 3.5mm jack
• External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
• Other connections: OPS

Convenience

• Placement: Landscape (24/7), Portrait (24/7)
• Screen saving functions: Pixel Shift, Low Bright
• Signal loop through: DisplayPort, RS232, HDMI, IR Loopthrough
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Keyboard control: Hidden, Lockable

Operating conditions

• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80% RH (No condensation)
• Humidity range (storage) [RH]: 5 - 95% RH (No condensation)

Power

• Consumption (Typical): 355 W
• Consumption (Max): 560 W
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Energy Label Class: G

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Stand: BM05911(Optional)
• Included Accessories: Philips logo (x1), AC power cord, AC Switch Cover, IR sensor cable (1.8 m) (x1), Quick start guide (x1), Remote control & AAA batteries, RS232 cable, RS232 daisy-chain cable, USB Cover and screw x1, Wire Clamper (x3)

Miscellaneous

• On-Screen Display Languages: Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese
• Regulatory approvals: CE, FCC, Class A, CCC, RoHS, CB, BSMI, EMF, VCCI, PSB, EnergyStar 8.0, ETL, CECP, EAC
• Warranty: 3 year warranty

Multimedia Applications

• USB Playback Video: H.263, H.264, H.265, MPEG
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Audio: AAC, MPEG, HEAAC

Dimensions

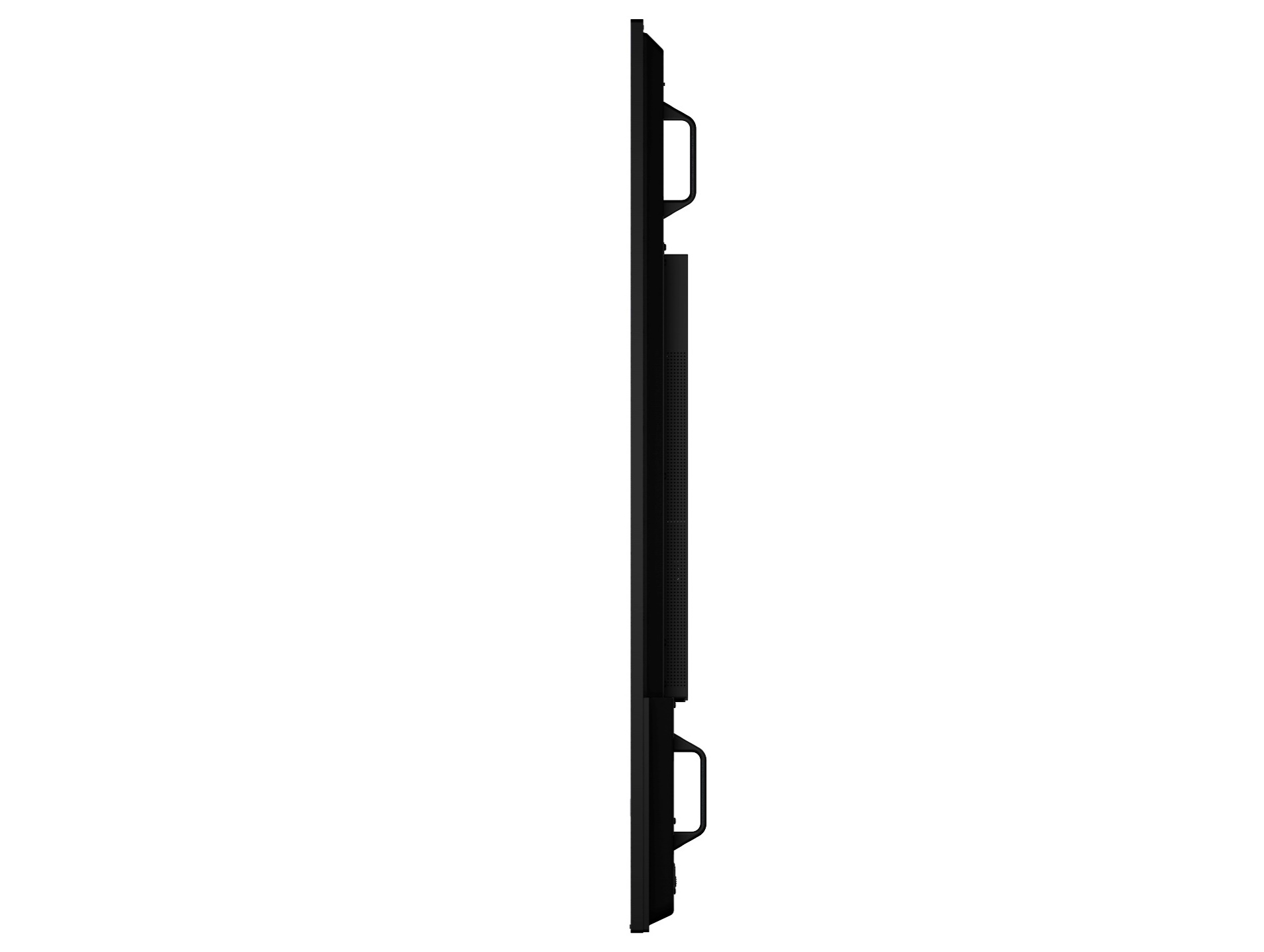

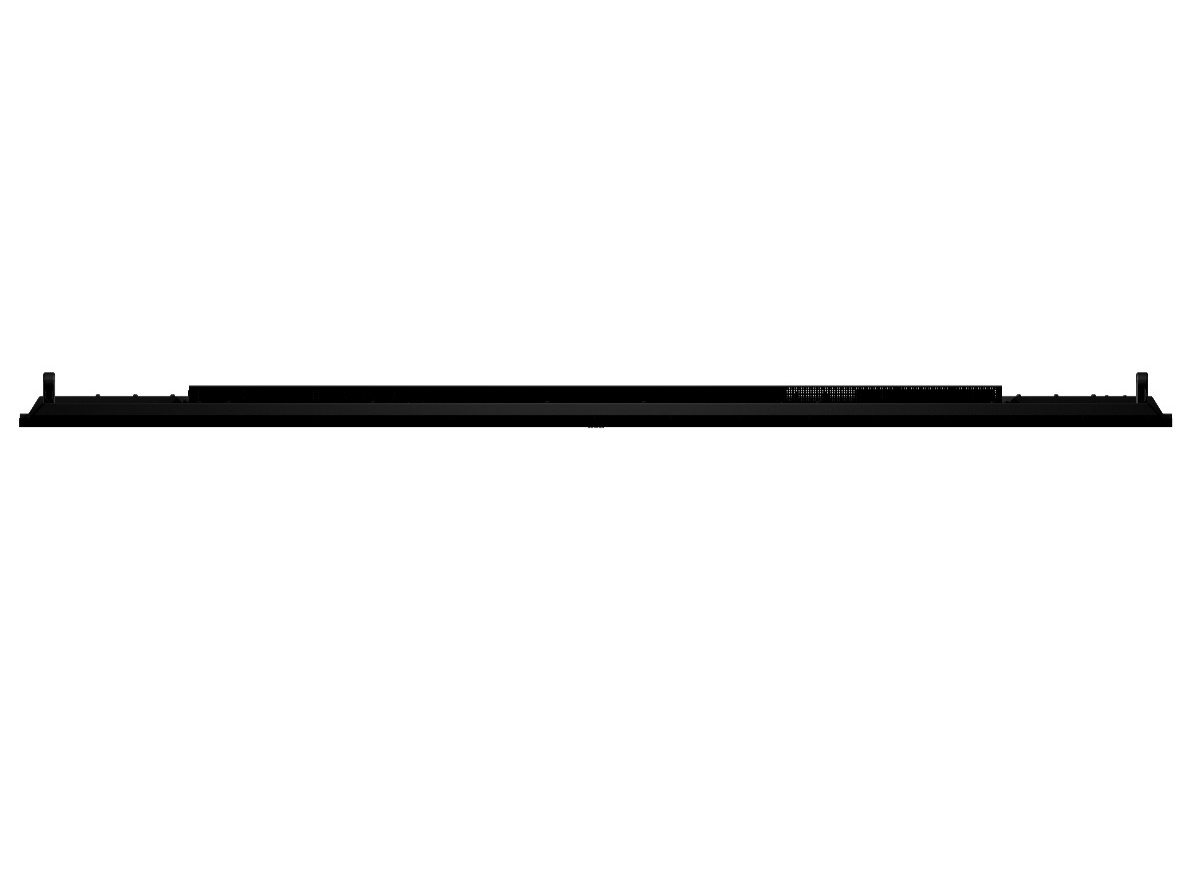

• Set dimensions (W x H x D): 1929.0 x 1100.0 x 69.5(D@Wall mount) /91.8(D@Handle) mm
• Set dimensions in inch (W x H x D): 75.94 x 43.31 x 2.74(D@Wall mount) / 3.61(D@Handle) inch
• Bezel width: 15.5 mm (Even bezel)

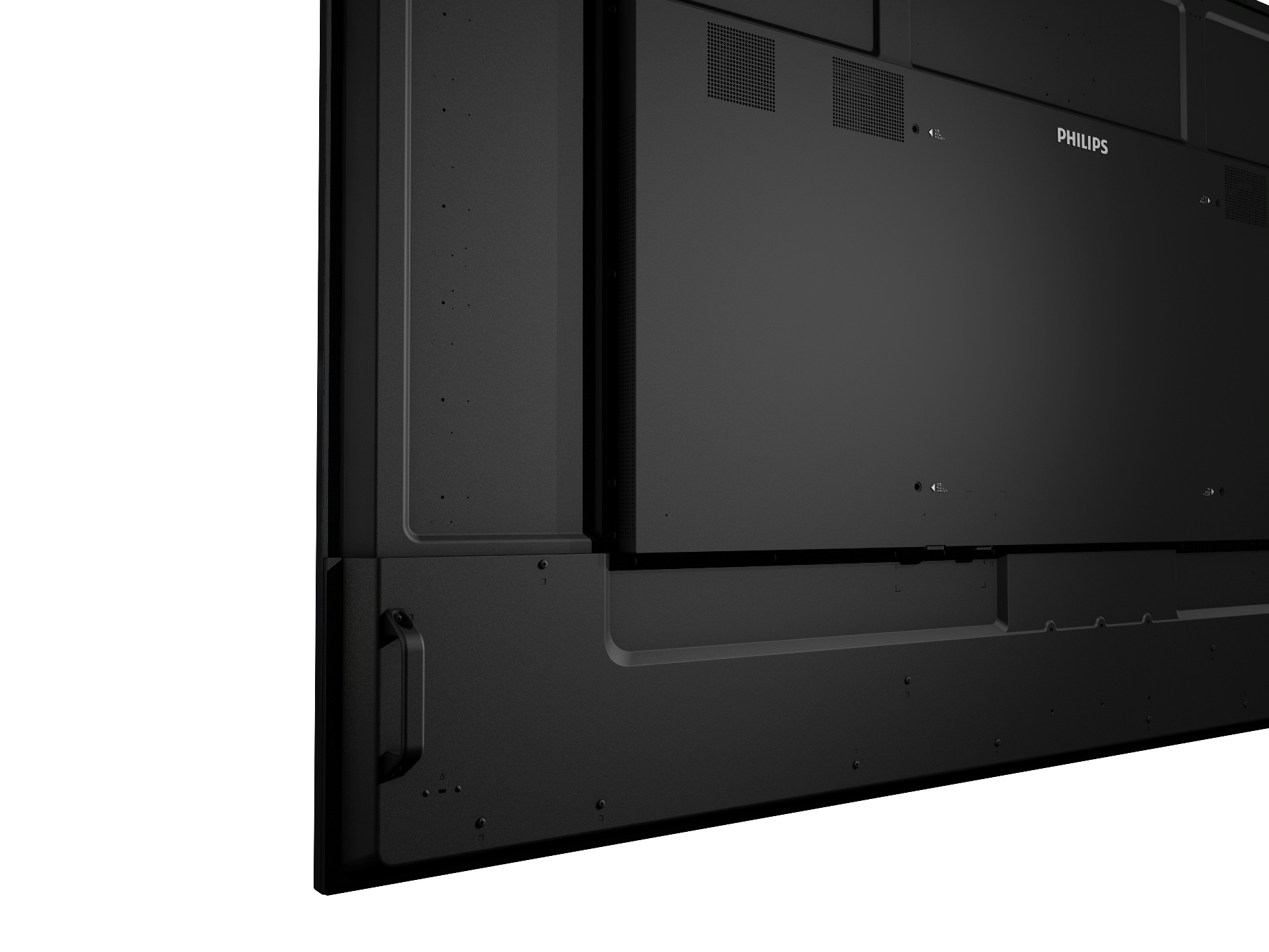

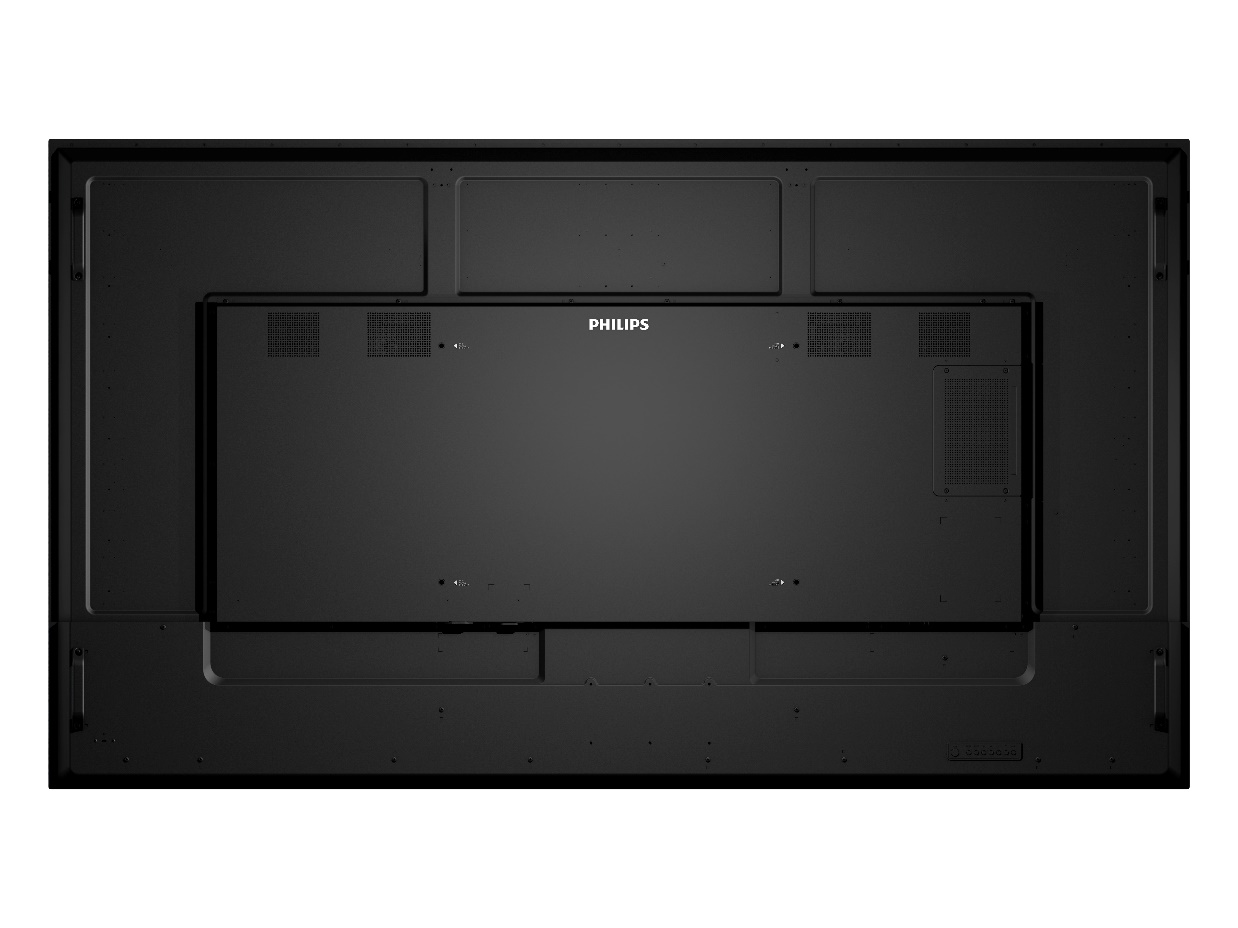

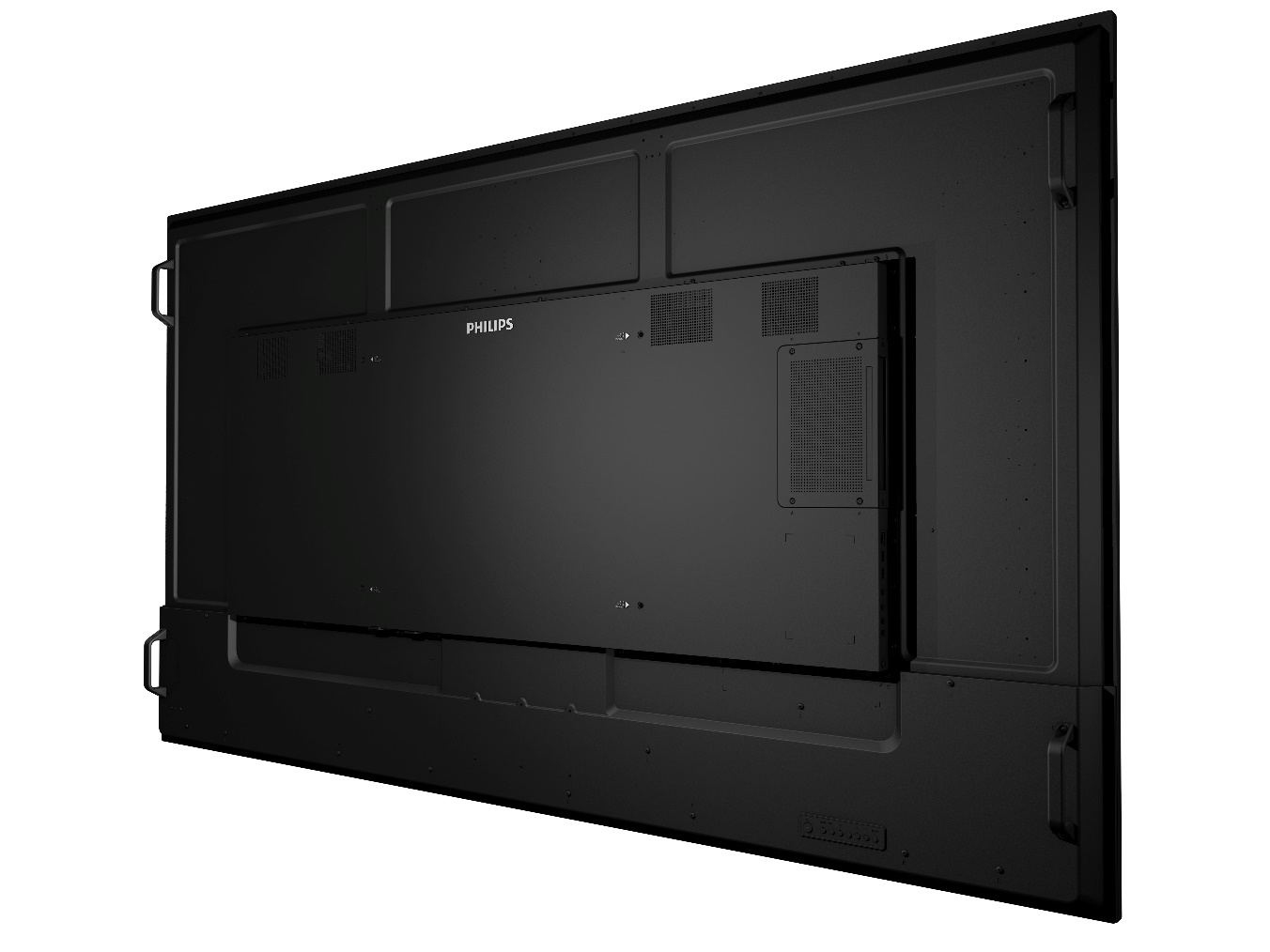

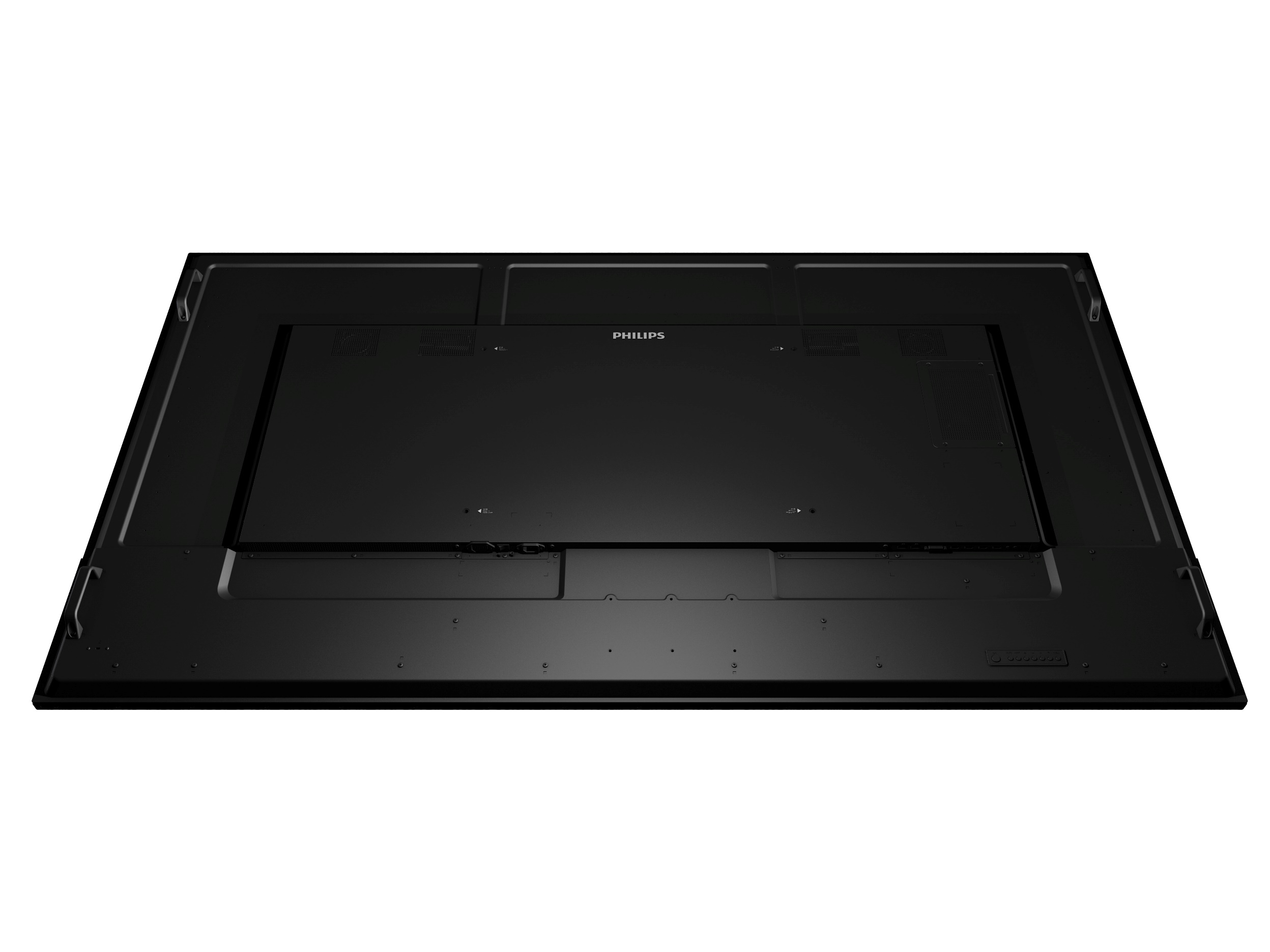

• VESA Mount: 600(H)x400(V) mm, M8
• Product weight: 50.24 kg
• Product weight (lb): 110.67 lb
